Merk: QUORE

6200W 48V Dual Output RGB Light 90-500VDC 120A MPPT Charger Controller on/off Grid With BMS Solar Inverter Work without battery

~~€ 848,07~~€ 542,23Aanbieding

Color

6.2kw-48v-wifi

Output Voltage

220-240V

Beschrijving

SPECIFICATIONS

Battery Voltage: 48VDC

Brand Name: other

Certification: CE,RoHS

Is Smart Device: Yes

Maximum Solar Charging Current: 120A

Model Number: 6.2KW-48V

Norminal Output Voltage: 220/230/240VAC

Origin: Mainland China

Output Current: 15.2A

Output Frequency: 50/60hz

Output Power: 6200W

Output Type: SINGLE

Output Waveform: Pure sine wave

Size: 44*33*15cm

Weight: 11KG

is_customized: Yes

Notice:

This is the local store of Sunbro Store in France. You do not need to pay additional value-added tax，We will ship to you from the EU warehouse. EU customers please rest assured to buy！！ 6200W 48V Dual Output RGB Light 90-500VDC 120A MPPT Charger Controller on/off Grid With BMS Solar Inverter Work without battery

>>>>Key Features:

▲Pure sine wave solar inverter(on/off Grid) ▲WIFI&GPRS available for IOS and Android
▲Inverter running without battery
▲One-key restoration to factory Settings
▲Built-in Lithium battery automatic activation
▲Built-in 120A(for 3.6KW/6.2KW)140A(for 7.2KW)
▲MPPT:Max 6200W(for 3.6KW),max 6500W(for 6.2KW) max 7500w(for 7.2kw)solar charge
▲High PV input voltage range(90~500VDC)
▲Built-in anti-dusk kit for harsh environment
▲Smart battery charge design to optimize battery life

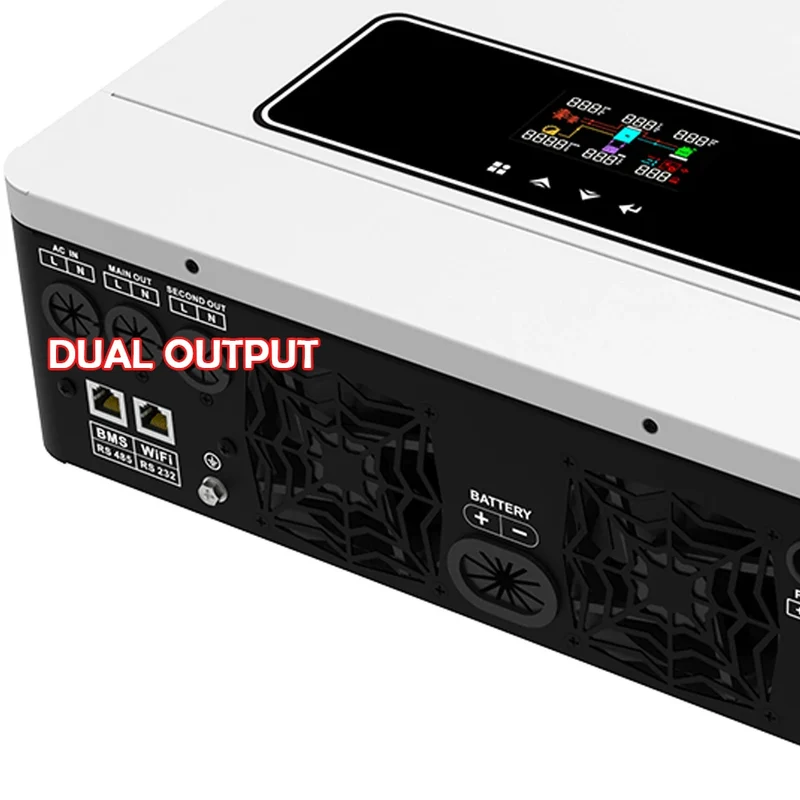

▲Dual Output

>>>>SPEC:

Model	NM-ECO-6.2KW PLUS
Phase	1-Phase
Maximum PV Input Power	6500W
Rated Output Power	6200W/6200VA
Maximum Solar Charging Current	120A
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage	360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage	30VDC/90VDC
MPPT Voltage Range	60VDC~450VDC
Number of MPPT/Max Input Current	1/22A
GRID OUTPUT(AC)
Norminal Output Voltage	220/230/240VAC
Output Valtage Range	195.5~253VAC
Norminal Output Current	27.0A
Power Factor	>0.99
Feed-in Grid Frequency Range	49~51~1Hz
EFFICIENCY
Max Conversion Efficiency(Solar to AC)	98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load	6200W
Maximum Main Load	6200W
Max Second Load(battery mode)	2067W
Main Load Cut Off Voltage	52VDC
Main Load Return Voltage	54VDC
OFF-GRID OPERATION
AC Input
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC
Maximum AC Input Current	36.4A
Nominal operating frequency	50/60Hz
Surge power	14400W
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	120-140VAC/180VAC
Output Waveform	Pure sine wave
Efficiency(DC to AC)	94%
BATTERY&CHARGER
Nominal DC Voltage	48VDC
Maximum Solar Charging Current	140A
Maximum AC Charging Current	100A
GENERAL
PHYSICAL
Dimension,DWH(mm)	110334423
Net Weight(Kgs)	11
INTERFACE
Communication Port	RS232/WiFi/Remove LCD/GPRS
ENVIRONMENT
Operating Temperature	-10~50
