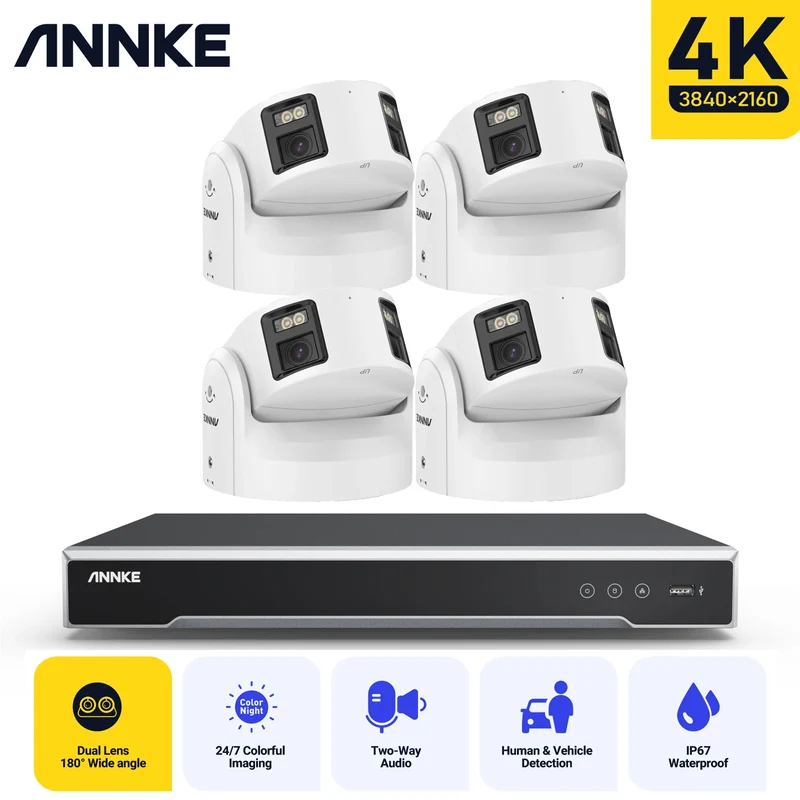

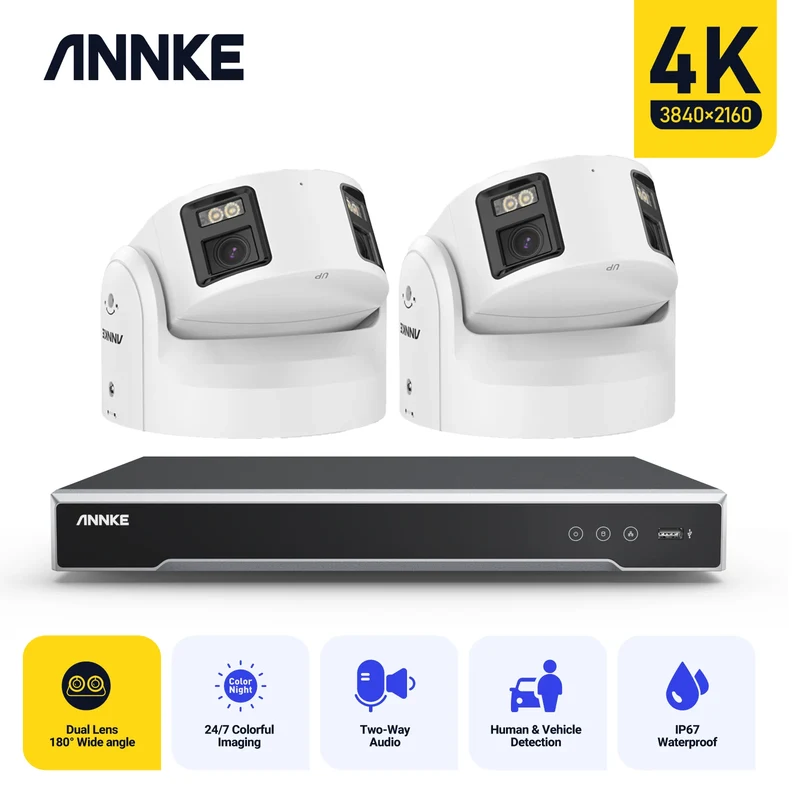

ANNKE 4K Duo Dual Lens Security Camera System POE AI Human Detect Full Color Night Vision Video Surveillance Security 8MP CCTV

~~€ 1.580,57~~€ 965,43Aanbieding

Color

8CH NVR 2PCS Camera

Ships From

CZECH REPUBLICspain

Build-in HDD

Beschrijving

SPECIFICATIONS

Brand Name: ANNKE

Cable Length: 30m

Certification: CE,EAC

Model Number: N88PCH-I91BH

Origin: Mainland China

PCS of Camera: 8PCS

Resolution: 8MP

TV System: NTSC,PAL

Video Input: 8 Channel

Camera Key features

★ 8 MP Panoramic Fixed Turret Network Camera

★ One image that presents all the scenes covered by the camera

★ 24/7 colorful imaging with F1.0 advanced lenses

★ Efficient H.265+ compression technology

★ Clear imaging against strong back light due to 130 dB WDR technology

★ Focus on human and vehicle classification based on deep learning

★ Active strobe light and audio alarm to warn intruders off

★ White Light Up to 40 m

★ Water and dust resistant (IP67)

16CH NVR Key features

· 8MP high definition Real-time live viewing

· Live view, recording&playback up to 8 MP resolution

· Up to 16 channel IP cameras can be connected with built-in PoE inputs

· Advanced H.265+ Video Compression

· 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)

· Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity

· Connectable to the third-party network cameras

· HDMI Video output at up to 4K (3840 × 2160) resolution

· Annke Vision for easy remote view

8CH NVR Key features

· 8MP high definition Real-time live viewing、recording&playback

· 8CH built-in PoE inputs

· H.265+/H.265/H.264+/H.264 video formats

· Support various VCA detection alarm and VCA search

· Up to 2-ch@8 MP/8-ch@1080p decoding capacity

· 2 SATA interfaces for HDD connection up to 16 TB capacity

· HDMI video output at up to 4K resolution

Packaging Contents

1 X NVR

2/4 X Camera

1 X Drill Template

1 X Waterproof connector

1 X Mounting Screws Bag

1 X USB Mouse

1 X 1M network cable

1 X 1.8M HDMI cable

1 X User's Manual

NVR
Video & Audio	Video Compression	H.264+/H.264/H.265/H.265+/MPEG4
	IP Video Input	8CH POE
	Video Output	HDMI Up to 4K,VGA Up to 1080P
	Incoming bandwidth	80Mbps
	Outgoing bandwidth	160Mbps
	Max Recording Resolution	Up to 8M(3840x2160)
	Max Playback Resolution	Up to 8M(3840x2160)
	Max Playback Channel	8CH
	Max Playback Capacity	2-ch@8 MP (25 fps)/8-ch@1080p (30 fps)
	Onvif	Support
Hard Drive	HDD	2 SATA interface
Hard Drive	HDD Capacity	Up to 8TB capacity for each HDD
External Interface	Network interface	RJ45x1(10/100/1000M)
	POE	8 Ports(IEEE802.3at/af)
	Audio in/out	1/1 ch, RCA
	Alarm Input/Output	4/1 Alarm
	USB	1 x USB2.0, 1xUSB 3.0
General	Operating Power	100 to 240VAC
	Power Consumption	≤15W(without HDD and POE)
	Power Consumption	POE: Max 25.5W for single port
	Working Temperature	14 °F ~ 131 °F /-10 °C ~+55 °C
	Dimensions(W x H x D)	15.2” x 12.4” x 2.0” / 385 x 315 x 52mm
	Weight (without hard disk)	6.6lbs / 3KG

IP Camera
Camera	Image sensor	2×1/1.8" Progressive Scan CMOS
	Main Stream	When WDR is On:50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440) When WDR is Off:50 Hz: 20 fps (5120 × 1440)60 Hz: 20 fps (5120 × 1440)
	Sub Stream	When WDR is On:50 Hz: 12.5 fps (1920 × 536, 960 × 272)60 Hz: 15 fps (1920 × 536, 960 × 272) When WDR is Off:50 Hz: 20 fps (1920 × 536, 960 × 272)60 Hz: 20 fps (1920 × 536, 960 × 272)
	Video compression	H.265+/H.265/H.264+/H.264
	Video Bit Rate	32 Kbps to 16 Mbps
	Built-in Microphone	Yes, support environment noise filtering
	Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
	Built-in Speaker	Yes, max. sound pressure: 10 cm: 95 dB
	Lens	Dual lens: 4 mm
	Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
	Angle of View	Horizontal FOV: 180° ± 10°, Vertical FOV: 44°
	DORI	4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
	Supplement Light	Yellow warm light
	Supplement Light Range	Up to 40 m
	Image Parameters Switch	Yes
	Image Enhancement	BLC, HLC, 3D DNR
	Wide Dynamic Range	130dB WDR
	Network Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Onvif, ISAPI,
	Basic Event	Motion detection (support human and vehicle detection),video tampering
	Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,(support human and vehicle detection)
	Flashing Light alarm	Support(Parameters adjustable,can be triggered from APP)
	Audio Alarm	Support(Parameters adjustable,support custom audio, can be triggered from APP)
General	Housing	Metal, White color
	Operating Power	PoE (802.3af)，12 VDC ± 25%,Ø 5.5 mm coaxial power plug
	Storage	Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR,
	Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
	Audio input/output	1 input (line in),1 output (line out)
	Alarm nput/output	1 input, 1 output (max. 24 VDC, 1 A)
	Hardware Reset	Yes
	Operating Temperature	-22 °F – 140 °F /-30 °C – 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP67
	Dimension (L x W x H)	Ø 155 mm × 155.3 mm (Ø 6.1" × 6.1")
	Weight	Approx. 1110 g (2.4 lb.)

ANNKE 4K Duo Dual Lens Security Camera System POE AI Human Detect Full Color Night Vision Video Surveillance Security 8MP CCTV
