Merk: QUORE

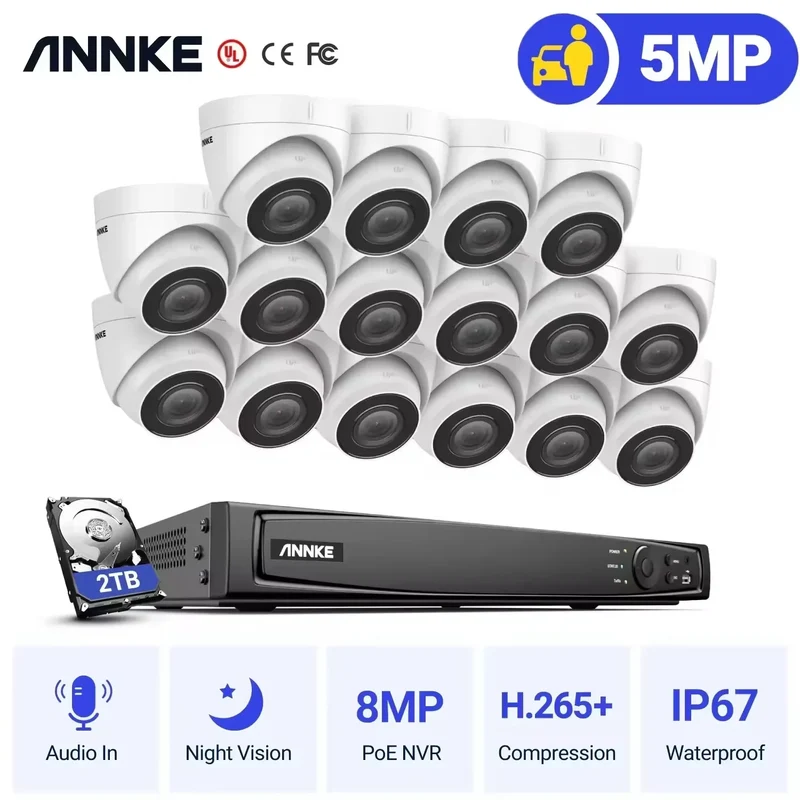

ANNKE 5MP H.265+ 16CH PoE Network Video Security System 16pcs 2.8mm Lens IP67 Outdoor POE IP Cameras Plug & Play PoE Camera Kit

€ 1.816,62€ 1.212,18Aanbieding
Color
Ships From
Build-in HDD
Aantal

Beschrijving

SPECIFICATIONS

Brand Name: ANNKE

Cable Length: 18m

Certification: CE

Hign-concerned Chemical: None

Housing: Metal and Plastic

Lens: 2.88mm

Model Number: N46PCK-I51DM*16

Origin: Mainland China

PCS of Camera: 8PCS

Resolution: 5MP

Smart home platform: None

TV System: NTSC,PAL

Video Input: 16 Channel

Video Resolution: 5MP(2560 *1920/15fps)

Video compression: H.265/H.264

Weatherproof Rating: IP67

NVR Key Features· Live view, recording&playback up to 8 MP resolution· Up to 16 channel IP cameras can be connected with built-in PoE inputs· Advanced H.265+ Video Compression· Supports iPhone、iPad、Android mobile remote monitoring· Connectable to the third-party network cameras· HDMI Video output at up to 4K (3840 × 2160) resolution· 2 SATA interfaces connectable for recording and backup· Annke Vision for easy remote view Camera Key Features★ 3K IR Network Camera with 16:9 image scale★ 2.8mm lens brings everything back to life★ Efficient H.265+ compression technology★ Motion detection 2.0 with human & Vehicle Detection★ Up to 100ft night vision with EXIR 2.0★ Clear day and night vision with 3D DNR and 120DB WDR★ Built-in Microphone, record with audio★ Built-in microSD/SDHC/SDXC Slot, up to 256 GB★ IP67 Dust and Waterproof Rating★ Support PoE &DC12V Notice that Australia Warehouse is I51DM, not has Human-Vehicle Tetection, Don't order if mind, thanks 16 CH NVR + 12 Pcs Camera 16 CH NVR + 16 Pcs Camera

NVR

Video & Audio

Video Compression

H.264+/H.264/H.265/H.265+/MPEG4

IP Video Input

16CH PoE

Video Output

HDMI up to 4K, VGA up to 1080p

Audio Input/Output

1/1 RCA

Incoming Bandwidth

160 M

Max. Recording Resolution

Up to 8MP (3840 X 2160)

Max. Playback Resolution

Up to 8MP (3840 X 2160)

Max. Playback Channel

16CH

Max. Playback Capacity

1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

ONVIF Protocols

Support

Hard Drive

HDD

2 SATA Interface

HDD Capacity

Up to 8 TB Capacity for each disk


External Interface

Network Interface

RJ45 X1 (10/100/1000 M)

PoE

16 Ports (IEEE802.3af/at)

Alarm Input/Output

-

RS485

-

USB

2X USB 2.0

General

Operating Power

AC 100-240 V

Power Consumption

≤15 W (Without HDD and PoE)

PoE: Max. 25.5W for Single Port

Working Temperature

14 °F — 131 °F/-10 °C — 55 °C

Dimensions (W X H X D)

15.2” X 12.4” X 2.0”/385 X 315 X 52 mm

Weight (Without Hard Disk)

6.6 lbs./3 kg

IP Camera

Camera

Image Sensor

1/3" Progressive Scan CMOS

Main Stream Max. Frame Rate

50Hz: 20 fps (2592 × 1944, 2560 × 1440), 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (2592 × 1944, 2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Substream Max. Frame Rate

50 Hz: 25 fps (640 X 480, 640 X 360, 320 X 240)
60 Hz: 30 fps (640 X 480, 640 X 360, 320 X 240)

Video Compression

H.265+/H.265/H.264+/H.264

Video Bitrate

32 Kbps - 8 Mbps

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Input

Built-in Microphone

Lens

2.8 mm

Min. Illumination

Color: 0.028 Lux @(F2.0, AGC On)

Angle of View

Horizontal FOV 98°, vertical FOV 53°, diagonal FOV 115°

Number of Infrared LEDs

2 pcs

Night Vision Distance

Up to 100 ft/30 m

DNR

3D DNR

Wide Dynamic Range

120 dB WDR

ONVIF

Support

IR-Cut Filter

Yes

Ethernet

RJ45 X1 (10 M/100 M)

General

Housing

Metal & Plastic

Color

White

Storage

Built-in MicroSD/SDHC/SDXC Slot, up to 256 GB

Hardware Reset

Yes

Operating Power

DC 12 V; PoE (802.3af)

Operating Temperature

-22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use

Indoor/Outdoor

Interface Protection

IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimension (L X W X H)

Ø110 mm X 85.3 mm (Ø4.3" X 3.4")

Weight

320 g (0.7 lb.)
