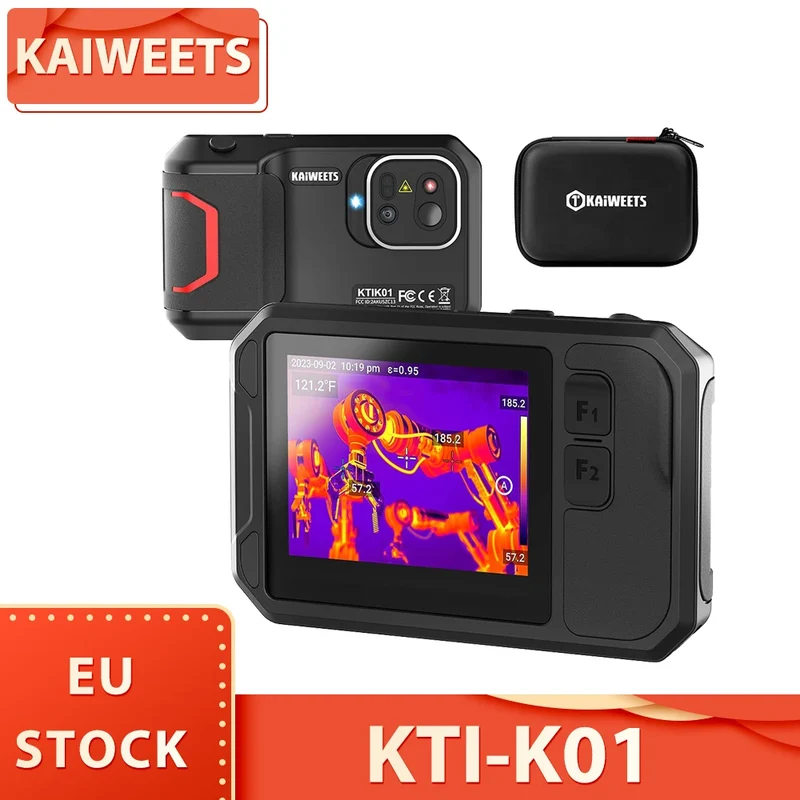

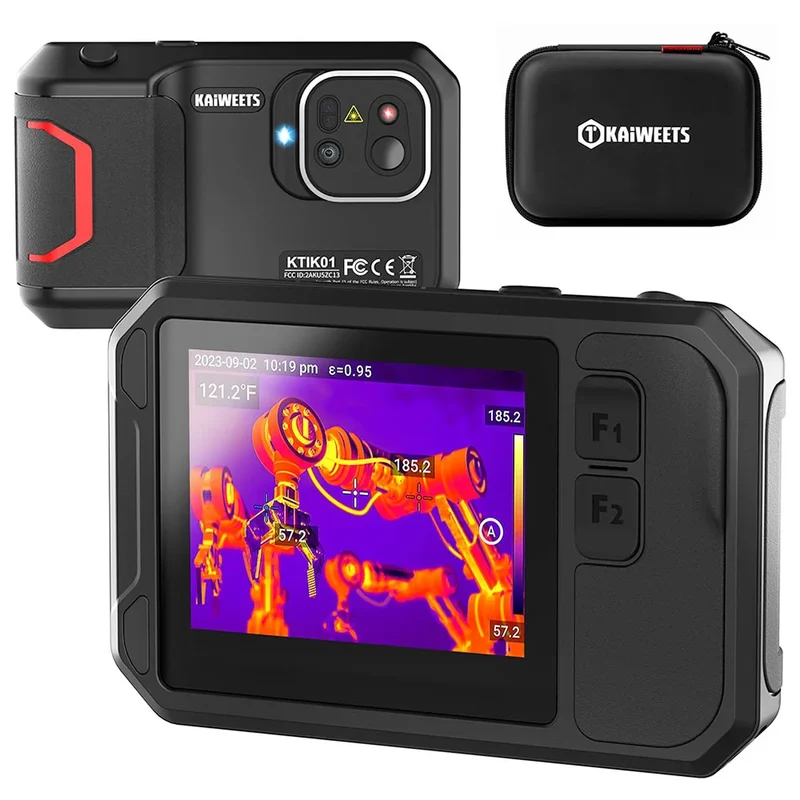

KAIWEETS KTI-K01 Thermal Imaging Camera, with Wi-Fi 3.5inch Touch-Screen, 256x192 Resolution, -4°F to 1022°F, 2100mAh Battery

SPECIFICATIONS

Brand Name: other

Display Size: 2.0 - 3.9 Inches

Is Smart Device: Yes

Origin: Mainland China

KAIWEETS KTI-K01 Thermal Imaging Camera, with Wi-Fi 3.5inch Touch-Screen, 256x192 Resolution, -4°F to 1022°F, 2100mAh Battery, IP54 Waterproof, Auto Power Off

>>Highlights

Higher Resolution & Wider Temperature Range

Thermal imaging camera with 256x192 higher resolution, thermal sensitivity≤45mk, fast 25Hz frame rate, smoother movement, and more accurate measurements. Wider temperature range: -4°F ~1022°F (-20℃~550℃), supports temperature alarm. Accurate measurement allows you to detect potential problems early and diagnose them reliably!

4 Image Modes & 6 Color Palettes

Equipped with 5-megapixel visible light, the thermal imager provides 4 image modes: IR, Visible, Fusion, and Picture-in-Picture to meet different usage scenarios. Also, 6 color palettes are available to choose the ideal color scale for your work.

Laser Distance Measure & Multi-function

The infrared camera supports laser ranging to intelligently or manually measure the area of rectangular analyzed objects (Safety level-Class II, <1mW power output); supports 1-8x electronic zoom to see details; supports up to 4 hours of continuous operation and auto shutdown to save power; illuminated light helps work in dark environments. Our thermal imager is Ideal for inspection, electrical/mechanical, building, and HVAC applications.

Wi-Fi Cloud Mode & Professional Analysis

Store data in the cloud via Wi-Fi to inform your team or customers of diagnostic results timely; also connect to a PC via USB for online analysis to detect changes in object temperature in real-time. You can stream the device in real time to a laptop or PC for offline temperature measurement, analyze saved images, export data reports, and dig deeper into the data.

IP54 Waterproof & Dustproof

The KAIWEETS KTI-K01 ergonomic grip makes it easy to hold, 1-meter drop-proof, waterproof, and dust-resistant design.

>>Specification

General	Brand: KAIWEETS Type: Thermal Imaging Camera Model: KTI K01 Color: Black
Specification	IR Resolution: 256x192 Frame Rate: 25Hz Visible Light Camera: 5MP Pixel High Thermal Sensitivity: ≤45mk Battery: 2100mAh Battery Temperature Range: -20°C to 550°C (-4°F to 1022°F) Protection Rate: IP54 Waterproof & Dustproof
Weight & Size	Product Weight: 1.8kg Package Weight: 1.8kg Package Size(L x W x H): 26.8x14x7.8cm

>>Product Pictures and Descriptions
