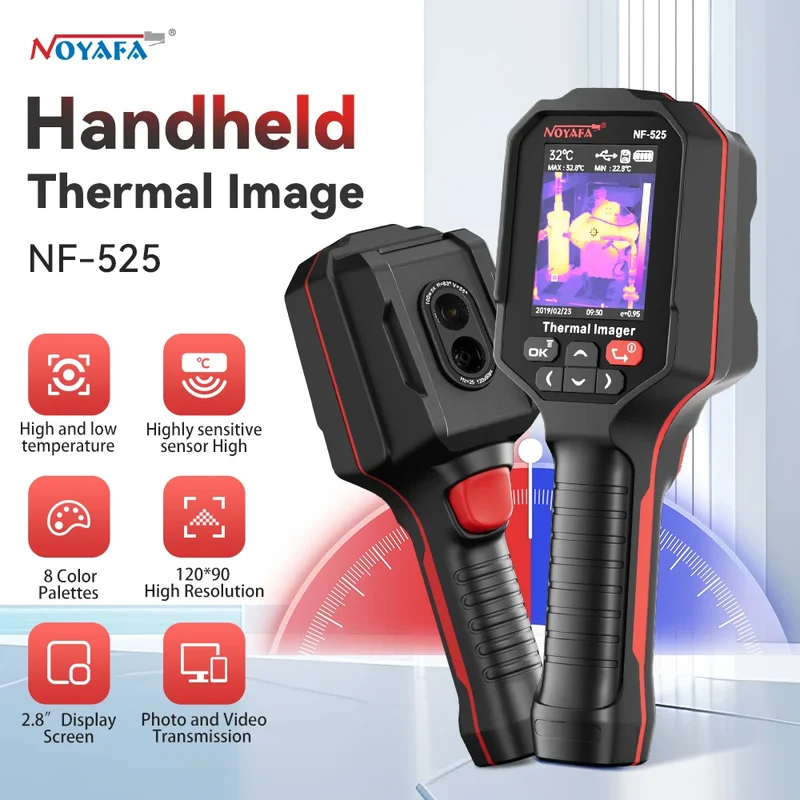

NOYAFA -10~400℃ Industrial Thermal Imager 120x90 Thermal Imaging Camera Thermal Imager Water Pipe Leak Automotive Inspect Tools

SPECIFICATIONS

Brand Name: NOYAFA

Capacity: 8G built-in memory

Certification: CE

Display resolution: 120x90 pixels

Hign-concerned Chemical: None

Mode: Visible light imaging and infrared imaging

Origin: Mainland China

Product Name: Infrared Thermal Imager

Smart home platform: other

Temperature Measurement Range: -10~400℃

Temperature measurement accuracy: ±2°C or ±2% of reading

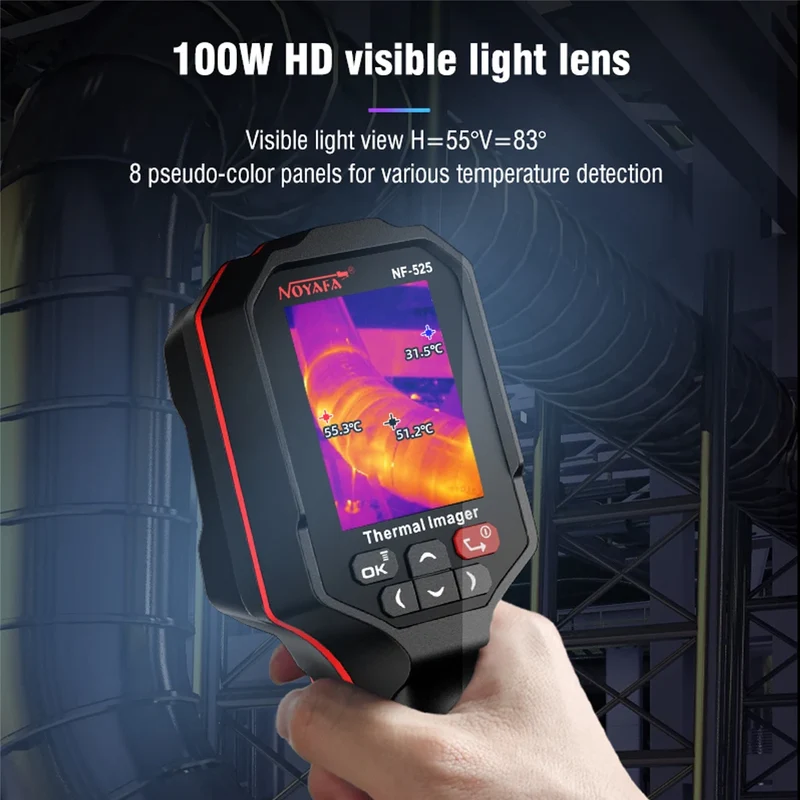

Visible light camera: 1 million pixels

Visible light camera resolution: 720P

Product Features:

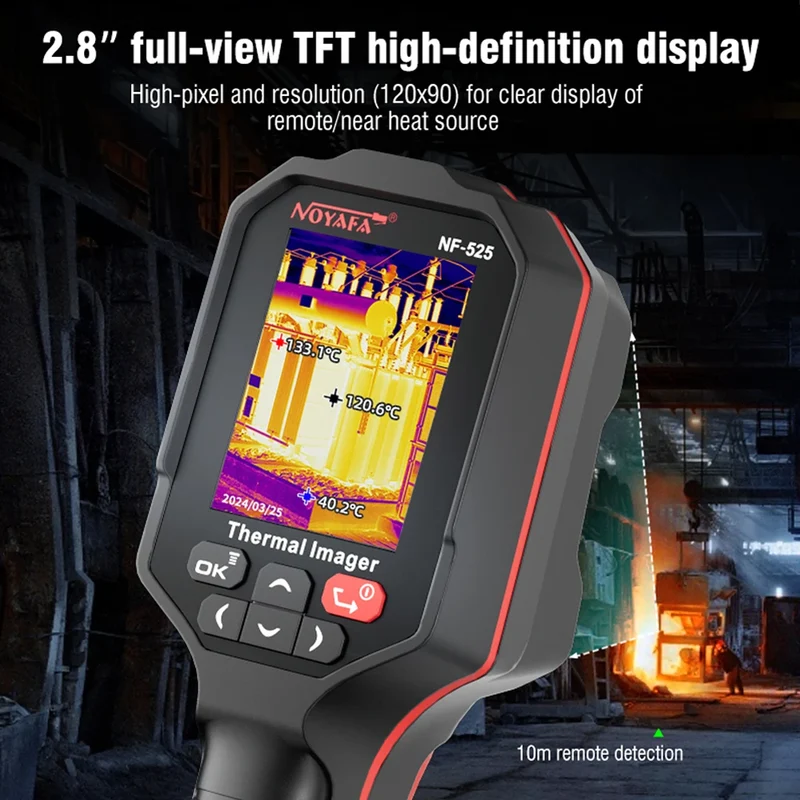

1. Thermal Imager has 2.8 inch full view display, 1 million visible light pixels and 120x90Infrared Resolution for Clear Image, 25Hz Frame rate of thermal images.

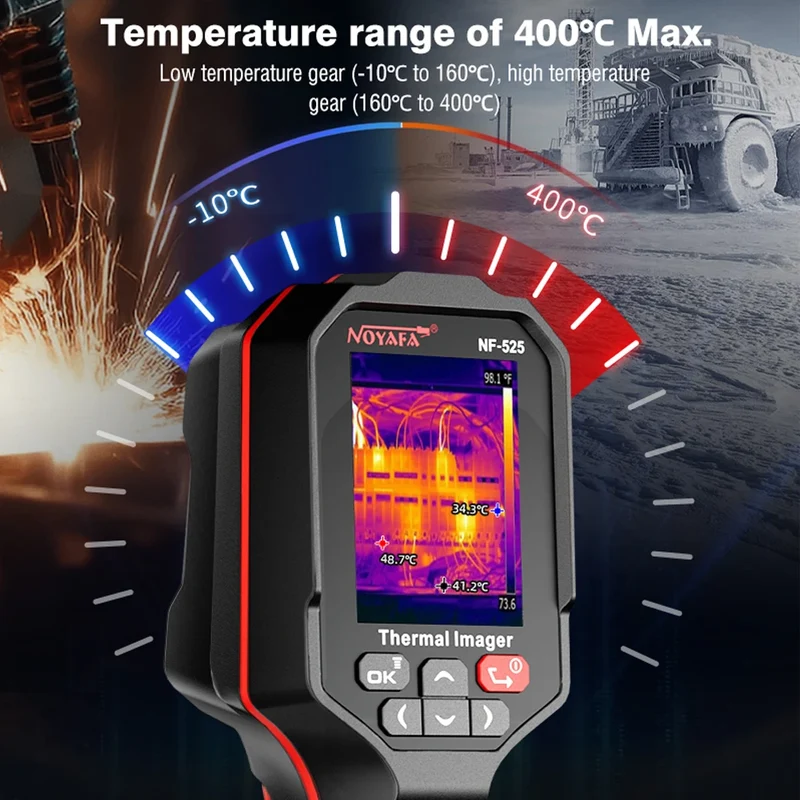

2. Enables temperature testing (-10~400℃) and imaging.

3.Temperature measurement method

① Conventional temperature measurement: Supports center point temperature measurement and high and low temperature continuous tracking.

② Regional temperature measurement: Part of the area can be selected for center point, high and low temperature tracking test, and this temperature measurement area can be zoomed in and out to meet the needs of different scenarios.

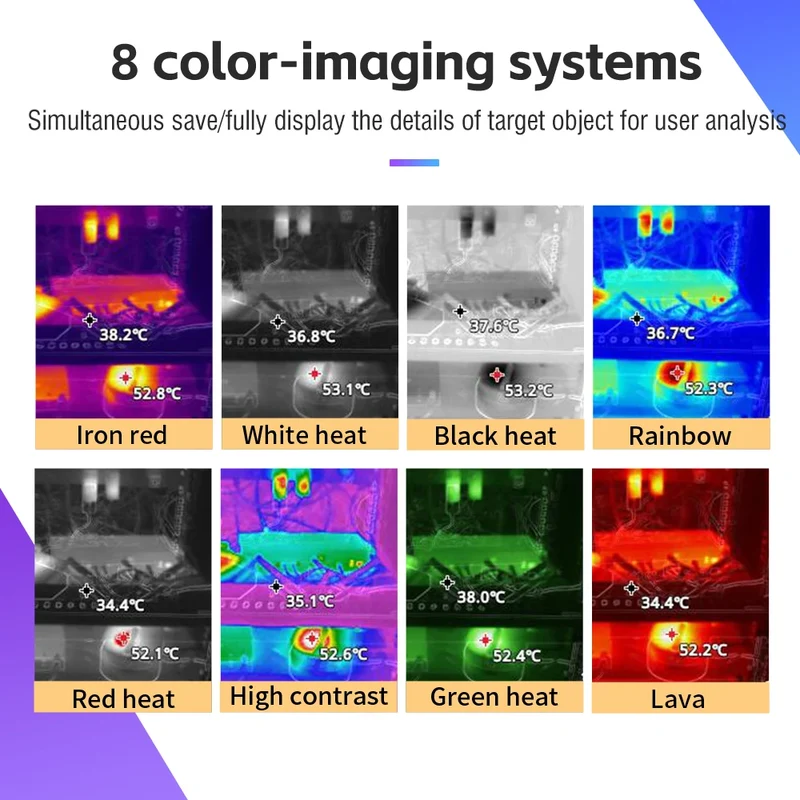

4. 8 COLOR PALETTES: iron red, white heat, black heat, rainbow, red heat, high contrast, green heat, lava.

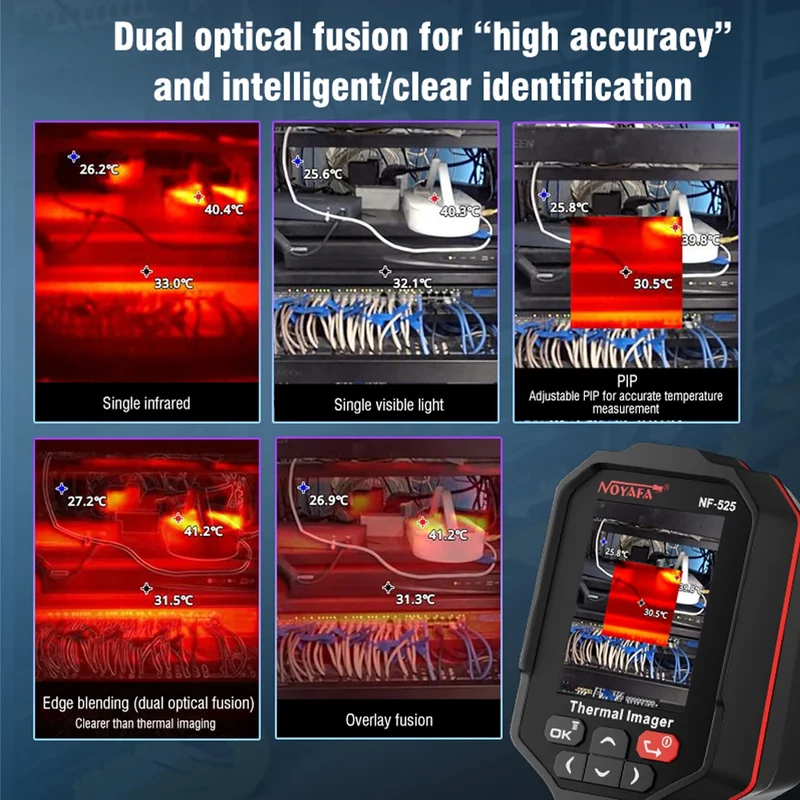

5. 7 IMAGE MODES:

Single infrared imaging, Visible light imaging,

Painting in painting, Edge fusion, Superposition fusion,

Fusion degree adjustment, Fusion deviation adjustment.

6. The emissivity of the infrared thermal camera can be adjusted from 0.01 to 0.99. Many common objects and materials (suchas timber, water, skin and textile fabric) can reflect the heat energy effectively,so it is easy to obtain relatively correct measurement value. The emissivity is usually set to 0.95 when rough objects that emits energy more easily aremeasured.

7. Built -in 8GB large -capacity image storage, which can take 20,000 photos and record 22 hours of video.

Operation Instructions:

1. Press the left and right keys to quickly switch color palettes, and press the up and down keys to quickly switch between visible light imaging and infrared imaging.

2. Photo and video recording: When the camera is powered on, short press the trigger button to take a photo, and long press the trigger button to record a video.

3. Data transmission: Connect the camera to the computer via a USB Type-C cable, and the thermal imager will generate a USB drive letter. You can copy photos and videos to the computer through Windows.

Product Description:

Brand: NOYAFA

Product Name: Infrared Thermal Imager

Type: NF-525

Size: 219x72x66mm

Display resolution: 120x90 pixels

Frame rate: 25Hz

Temperature Measurement Range: -10~400℃

Temperature measurement accuracy: ±2°C or ±2% of reading

Mode: Visible light imaging and infrared imaging

Color palette: 8 types

Image mode: 7 types

Visible light camera: 1 million pixels

Visible light camera resolution: 720P

Capacity: 8G built-in memory

Language: 9 languages (Chinese, English, Russian, French, German, Spanish, Dutch, Japanese, Korean, etc.)

Power: 3.7V/2600Ah Lithium Battery
