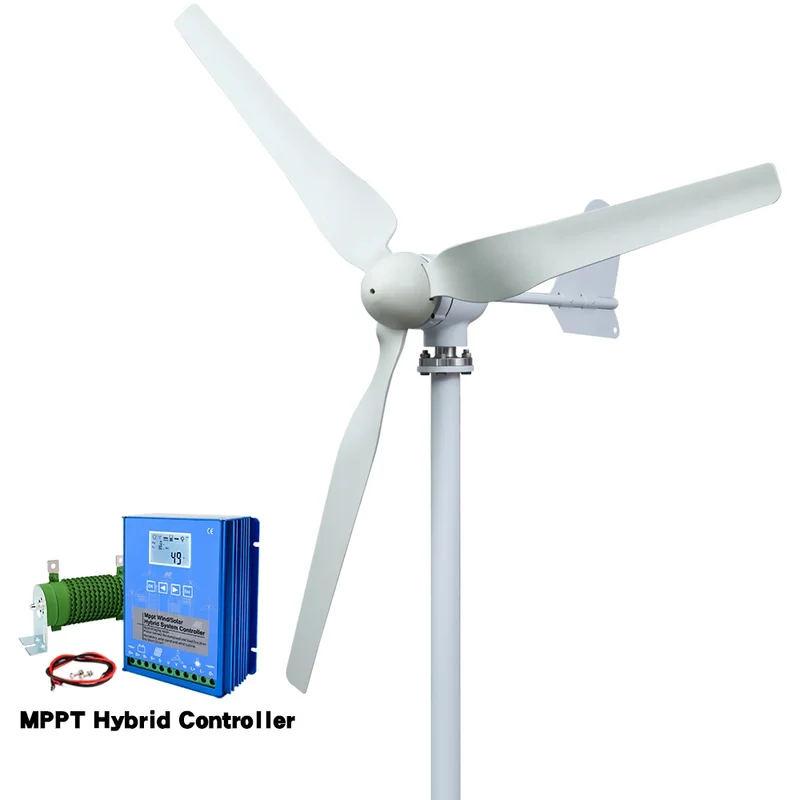

SMARAAD Horizontal Wind Generator 4000W Turbine MPPT Controller 12V 24V 48V Low Noise Medium Windmill Household Small

SPECIFICATIONS

Brand Name: SMARAAD

Certification: CE,CE/ROHS/ISO9001

Hign-concerned Chemical: None

Installation Method: Assembly

Model Number: SM3-4000W

Mounting Base: Without Mounting Base

Origin: Mainland China

Power: 4000W Small Horizontal Windmill

Shaft Material: IRON

Start-up wind speed: 2m/s

Type: Wind Power Generator

blades material: nylon

color: white

is_customized: Yes

number of blades: 3 Blades

shell material: aluminum alloy

SMARAAD horizontal wind generator 4000W turbine MPPT controller 12v 24V 48V low noise medium windmill household small factory

SPECIFICATIONS:

Hybrid Controller with LCD screen

The controller has basic control and protection functions, and provides low-voltage charging function. The battery can be charged in low-speed wind. Maximum wind power 4500W

It allows the input of solar panels. The default solar capacity is 1000W, and the optional solar capacity can be up to 2000W.

MPPT BOOST WIND CONTROLLER(optional)

This controller has basic control and protect functions, and provide low voltage charging function. the battery could be charged under low speed wind. Pls click below pictures to get the specification of MPPT wind controller:

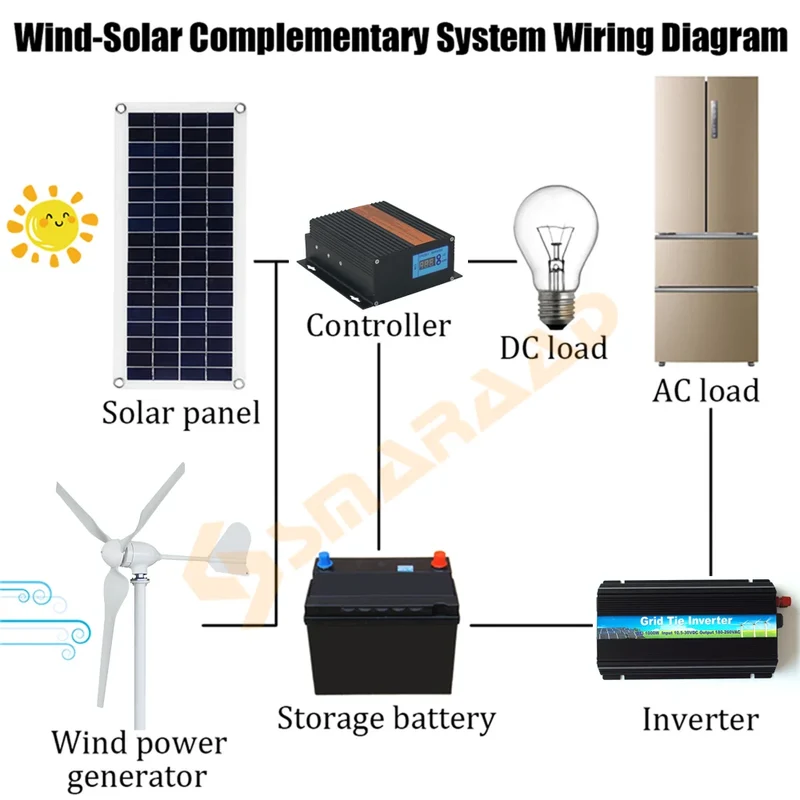

Off grid system

The controller has basic control and protection functions, and provides low-voltage charging function. The battery can be charged in low speed wind. The maximum wind power is 2500W. The input of the inverter can be 12V - 48V. The output can be 110-230V, 50HZ, 60HZ

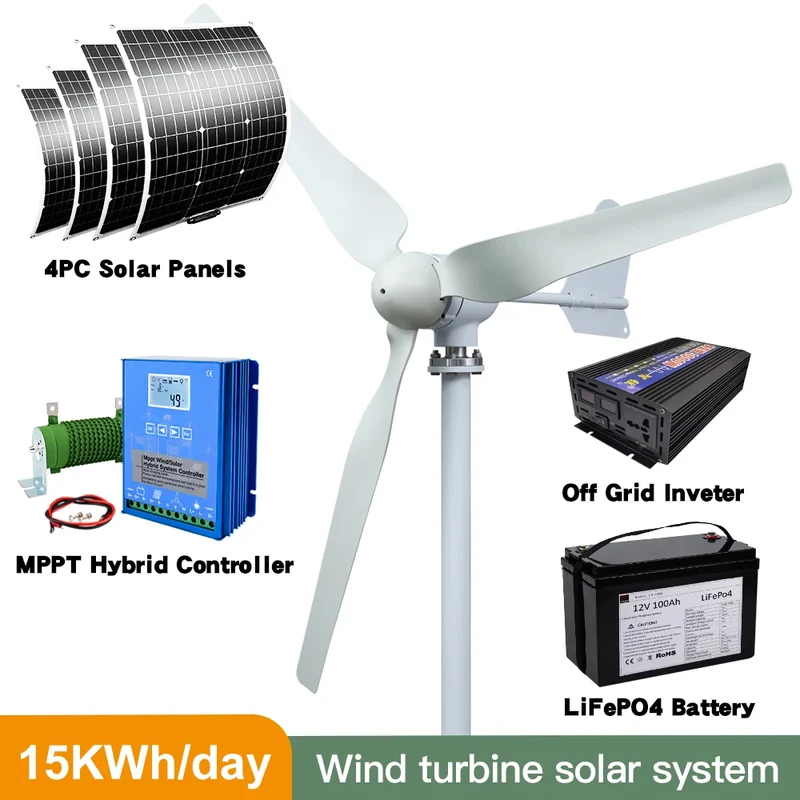

With solar panel system

The system with solar panels includes 4pcs of 100W 18V flexible solar panels that can be directly connected to the hybrid controller to charge the battery.

With battery system

The battery system includes 12.8V 100ah or 25.6V 50ah 48V 25a lithium iron phosphate batteries with a total capacity of 1280wh. If you purchase a battery system, it will be a complete system. The turbine solar panel will directly charge the battery and connect it to your home power through an inverter. Due to battery transportation issues, please contact me for some international procurement.

PACKING LIST:

wind turbine only：

1.wind turbine 1set(hub,tail, blades,generator,hood,bolts and nuts)

2. installation tool 1 set.

3.flange 1 piece.

With MPPT Controller:

1.wind turbine 1set(hub,tail, blades,generator,hood,bolts and nuts)

2. installation tool 1 set.

3.flange 1 piece.

4.MPPT Controller 1piece

With Hybrid Controller:

1.wind turbine 1set(hub,tail, blades,generator,hood,bolts and nuts)

2. installation tool 1 set.

3.flange 1 piece.

4.Hybrid Controller 1piece

With off grid system:

1.wind turbine 1set(hub,tail, blades,generator,hood,bolts and nuts)
